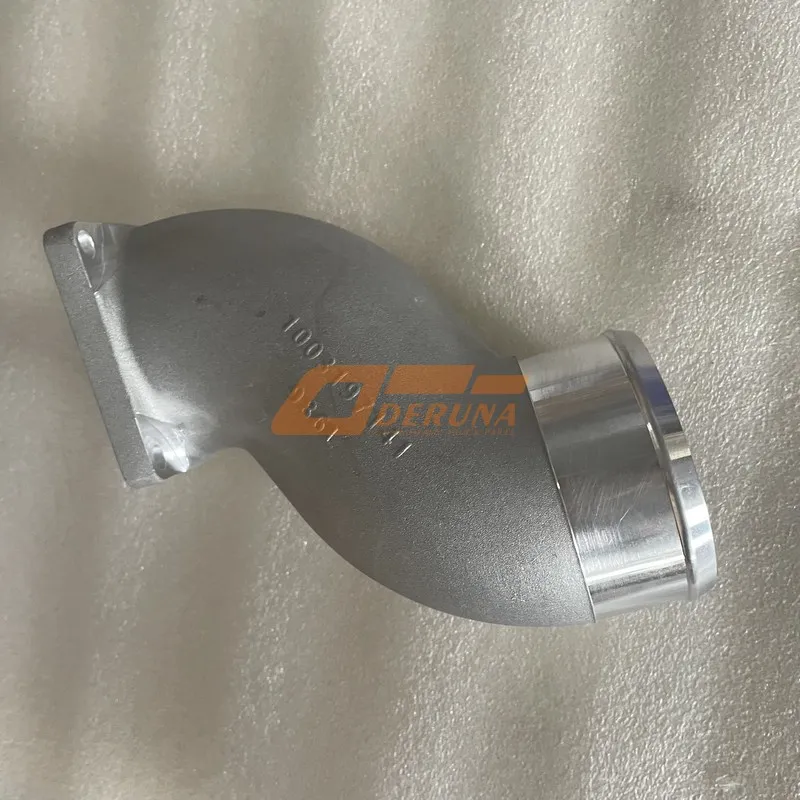

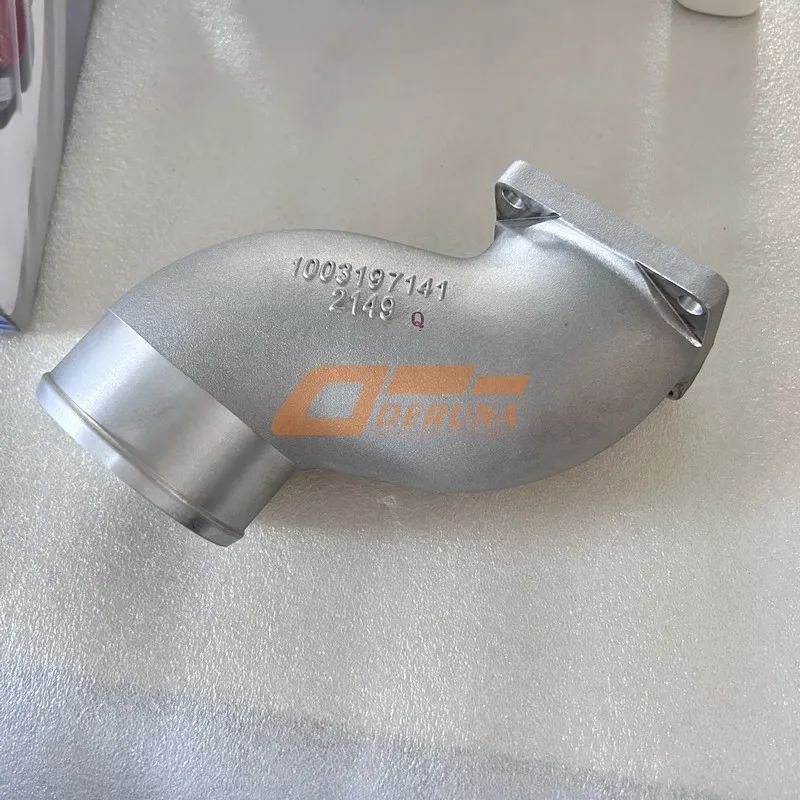

The inlet pipe is a vital component of the engine’s air intake system, channeling clean, filtered air to the cylinders for efficient combustion. The genuine SINOTRUK HOWO 003197141 Inlet Pipe is an OEM‑grade component manufactured to exacting tolerances for a perfect fit and lasting durability. As a critical element of the trusted Sinotruk howo parts family, this inlet pipe guarantees seamless integration, superior airflow, and long‑term reliability. Engineered for HOWO heavy‑duty engines, the 003197141 unit withstands extreme temperatures, vibration, and pressure pulsations in mining, construction, and long‑haul applications.
Inlet Pipe
Впускной патрубок
Tubo de admisión
The 003197141 inlet pipe is precision‑cast from high‑grade aluminum alloy, offering an excellent strength‑to‑weight ratio and superior resistance to thermal fatigue. The casting process ensures smooth internal surfaces with minimal porosity, reducing airflow resistance and preventing turbulence that can disrupt the air‑fuel mixture. The pipe is designed to withstand continuous operating temperatures up to 200°C and pressure spikes from turbocharger surge.
All mounting flanges are machined to exact OEM specifications, ensuring a leak‑free seal with the cylinder head, intake manifold, and turbocharger outlet. The pipe includes integrated mounting bosses for sensors (such as MAP or IAT) and vacuum lines, exactly as per the original design. This guarantees that all ancillary components fit correctly without modification.
A multi‑stage finishing process includes a chemical conversion coating (alodine) for corrosion protection, followed by a high‑temperature resistant paint that matches the original engine color. This coating resists oil, coolant, and road salts, ensuring the 003197141 pipe maintains its appearance and structural integrity for the life of the engine.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO 003197141 Inlet Pipe. This data is essential for verifying compatibility and performance characteristics.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | 003197141 | SINOTRUK HOWO Original Code |
| Product Name | Inlet Pipe | Intake manifold / air intake tube |
| Material | Cast aluminum alloy (A356‑T6) | High strength, heat treated |
| Surface Finish | Alodine 1200 + high‑temp paint | Corrosion resistant |
| Overall Length | 485 mm (approx.) | Varies by engine configuration |
| Inlet Diameter | 80 mm | Matches turbocharger outlet |
| Outlet Diameter | 70 mm (to intake manifold) | Step down for velocity |
| Flange Type | Oval, 4‑bolt pattern | With integral gasket groove |
| Weight (approx.) | 3.2 kg | Lightweight yet robust |
| Sensor Ports | MAP sensor, boost pressure tap | Pre‑drilled and threaded |
| Compatible Engines | SINOTRUK HOWO WD615, D10, D12 series | Verify with engine serial |
Installing the 003197141 inlet pipe requires attention to cleanliness and torque specifications. Begin by disconnecting the battery and removing any air intake components upstream of the pipe. Carefully disconnect the MAP sensor and any vacuum lines. Loosen the clamps or bolts securing the old inlet pipe and remove it. Clean the mating surfaces on the turbocharger outlet and intake manifold, removing any old gasket material.
Place a new OEM‑spec gasket on each flange. Position the new 003197141 pipe and hand‑tighten the mounting bolts or clamps. Tighten all fasteners in a crisscross pattern to the specified torque. Reconnect the MAP sensor and vacuum lines. Ensure all connections are secure and there are no leaks. The pipe is a direct OEM replacement for SINOTRUK HOWO engines using this part number; always verify compatibility with your engine model and year.
Before installation, apply a thin film of high‑temperature anti‑seize to the bolts to prevent seizing in the aluminum threads. Use new gaskets to ensure a leak‑free seal. After installation, start the engine and check for intake leaks using a soapy water spray.
Smooth internal surfaces and precise geometry ensure minimal pressure drop, allowing the engine to receive maximum air charge. This improves volumetric efficiency, resulting in better throttle response and power.
Precision‑machined flanges and OEM‑spec gaskets guarantee a perfect seal, preventing unmetered air from entering the intake system. This maintains accurate air‑fuel ratios for optimal combustion and emissions control.
Cast aluminum construction and corrosion‑resistant coatings allow the 003197141 pipe to withstand the harsh under‑hood environment for hundreds of thousands of kilometers.
Replacing a cracked or leaking inlet pipe with a genuine OEM part prevents secondary damage to the turbocharger or engine, saving costly repairs down the road.
Over time, inlet pipes can develop cracks due to thermal cycling, vibration, or impact. Common indicators that the 003197141 needs replacement include visible cracks or fractures, loose mounting flanges, air leaks (hissing sound), a check engine light due to lean mixture, and loss of power or poor fuel economy. During inspections, check for signs of soot around the flanges, indicating a leak.
Ignoring a damaged inlet pipe can lead to unmetered air entering the engine, causing incorrect fuel trims, potential turbocharger overspeed, and even engine damage. Replacing it promptly with a genuine 003197141 restores proper airflow and engine performance.
To maximize the life of your 003197141 inlet pipe, ensure all intake system components are properly supported and not subjected to excessive strain. Regularly inspect the pipe for cracks, especially around mounting bosses. Keep the engine compartment clean to prevent abrasive dirt from damaging the surface. When working on the intake system, use care to avoid bending or stressing the pipe.
Always replace gaskets when removing the pipe, and tighten fasteners to the correct torque. If the pipe is exposed to extreme temperatures (e.g., after a turbocharger failure), inspect it for heat damage. Following these practices will help your 003197141 inlet pipe provide reliable service for years.
Generic aftermarket inlet pipes often use inferior casting techniques, resulting in rough internal surfaces, thin walls, and poor fit. The genuine SINOTRUK HOWO 003197141 inlet pipe is engineered to the exact specifications of your engine, ensuring correct airflow characteristics, mounting, and durability. It is manufactured under strict quality controls using the same tooling and materials as the original part fitted at the factory.
By choosing the authentic 003197141, you protect your investment, maintain engine performance, and ensure reliable operation. For fleet managers and owner‑operators who demand the best, the genuine 003197141 is the only responsible choice.
The 003197141 Inlet Pipe is part of SINOTRUK’s comprehensive line of genuine engine components. Whether you operate in extreme cold, desert heat, or humid coastal environments, this pipe delivers dependable performance. Its robust construction resists thermal stress and vibration, providing peace of mind for every journey. Always insist on genuine parts to keep your HOWO running at its best.
For workshops and service centers, stocking the genuine 003197141 ensures that every intake system repair meets the highest standards. Customers will appreciate the restored power, smooth idle, and extended engine life. With the 003197141, you are not just replacing a pipe—you are restoring the efficiency and reliability of the engine’s breathing system.
Remember, the inlet pipe is critical for proper combustion. Using genuine SINOTRUK HOWO parts like the 003197141 is an investment in reliability, performance, and operational efficiency. Trust the original, trust the 003197141.
